Thermal Component Precision Cleaning Equipment

A Suzhou thermal management cleaning equipment manufacturer — integrated clean–air-blow–vacuum-dry–cool systems for cold plates, oil coolers, manifolds and flow plates, with multi-stage filtered media recirculation controlling micron particles, metal chips and ionic contamination per ISO 16232 / VDA 19.1

ESML is a Suzhou-based manufacturer of automotive parts and industrial precision cleaning equipment, providing automated cleaning equipment for automotive thermal management and AI liquid cooling components. Targeted flushing with multi-stage filtered media recirculation removes micron particles, metal chips, oil and ionic contamination from internal flow channels; cleanliness is verified per ISO 16232 / VDA 19.1 (particle size distribution and residual contaminant mass). Automatic in-line tray transfer and clean–air-blow–vacuum-dry–cool run in one integrated line (loading/unloading configured per project), deployed at a leading domestic thermal management Tier 1 supplier.
01 / EQUIPMENT

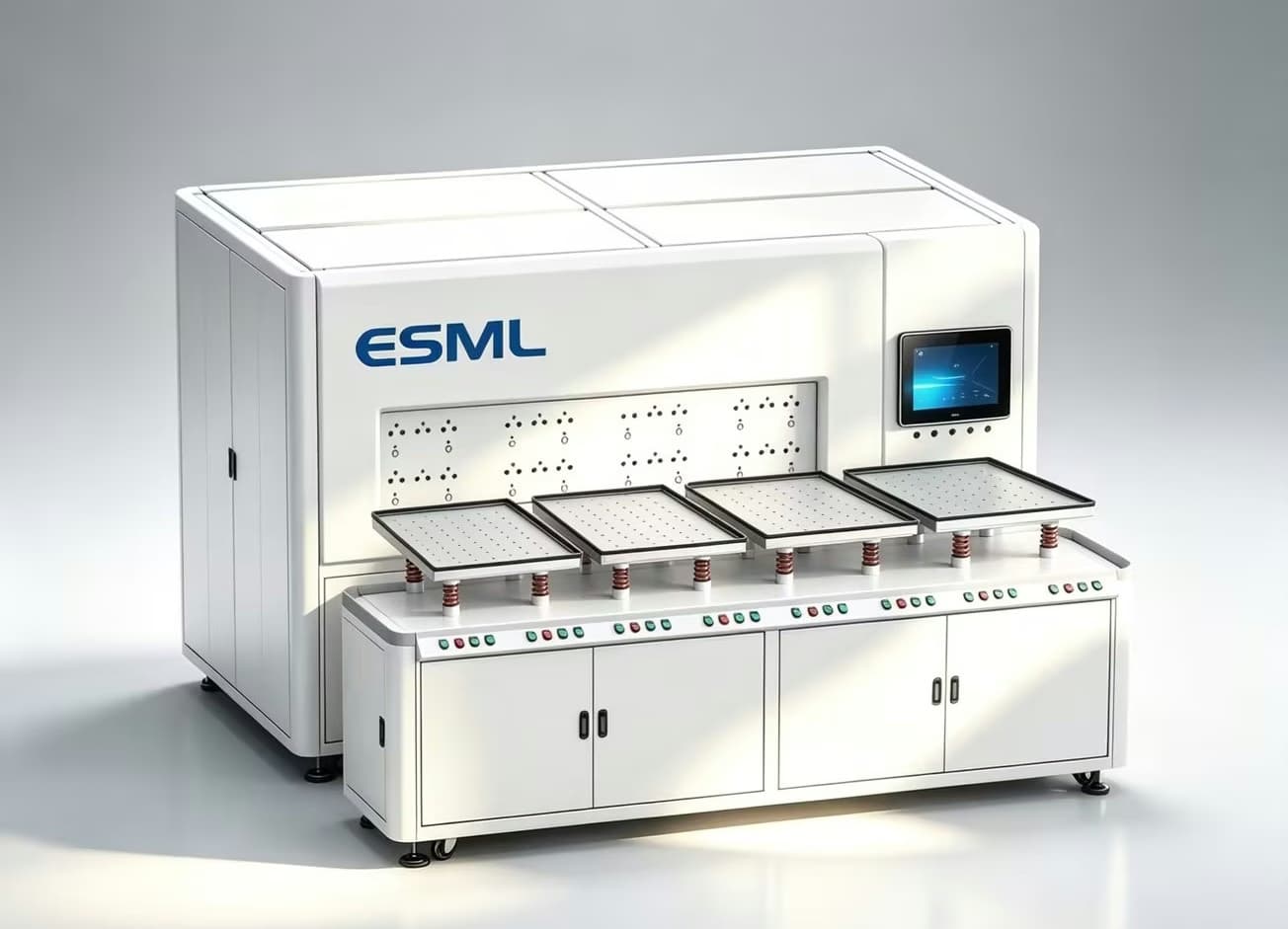

ESML thermal management flow-path cleaning equipment · cold plate manifold integrated clean-dry-cool
≤ 200μmPARTICLE

What is a thermal flow-channel cleaning system?

A thermal flow-channel cleaning system is a precision cleaning system for the internal flow channels of automotive thermal management components and AI liquid-cooling components. It removes micron particles, metal chips, oil and ionic contamination through targeted flushing with multi-stage filtered media recirculation, with cleanliness assessed per ISO 16232 / VDA 19.1 after cleaning.

01PROCESS

Integrated Process

Automatic in-line tray transfer plus the full clean–air-blow–vacuum-dry–cool workflow in one line; cleaning media is continuously recirculated through multi-stage filtration, minimizing manual handling and recontamination risk.
Integrated Precision Cleaning ProcessINTEGRATED PRECISION CLEANING PROCESS3 STAGESCleanCLEANDryDRYCoolCOOLCOLD PLATE / MANIFOLD≤ 30μm particle residueMicron particle removalResidue-free dryingStable at ambient tempFully traceable
  1. 01

    Clean

    • Micron-level particle removal
  2. 02

    Dry

    • Zero residual moisture
  3. 03

    Cool

    • Stabilized to ambient
02CAPABILITIES

Core Capabilities

01

Integrated Process

Cleaning + air blow + vacuum drying + cooling, automatic tray transfer

02

High Cleanliness

Micron particle, metal chip and ionic contamination control

03

Non-destructive

No damage to channel surface or sealing structures

04

Automated Control

Programmable parameters with cleanliness logging for batch consistency

03APPLICATIONS

Applications

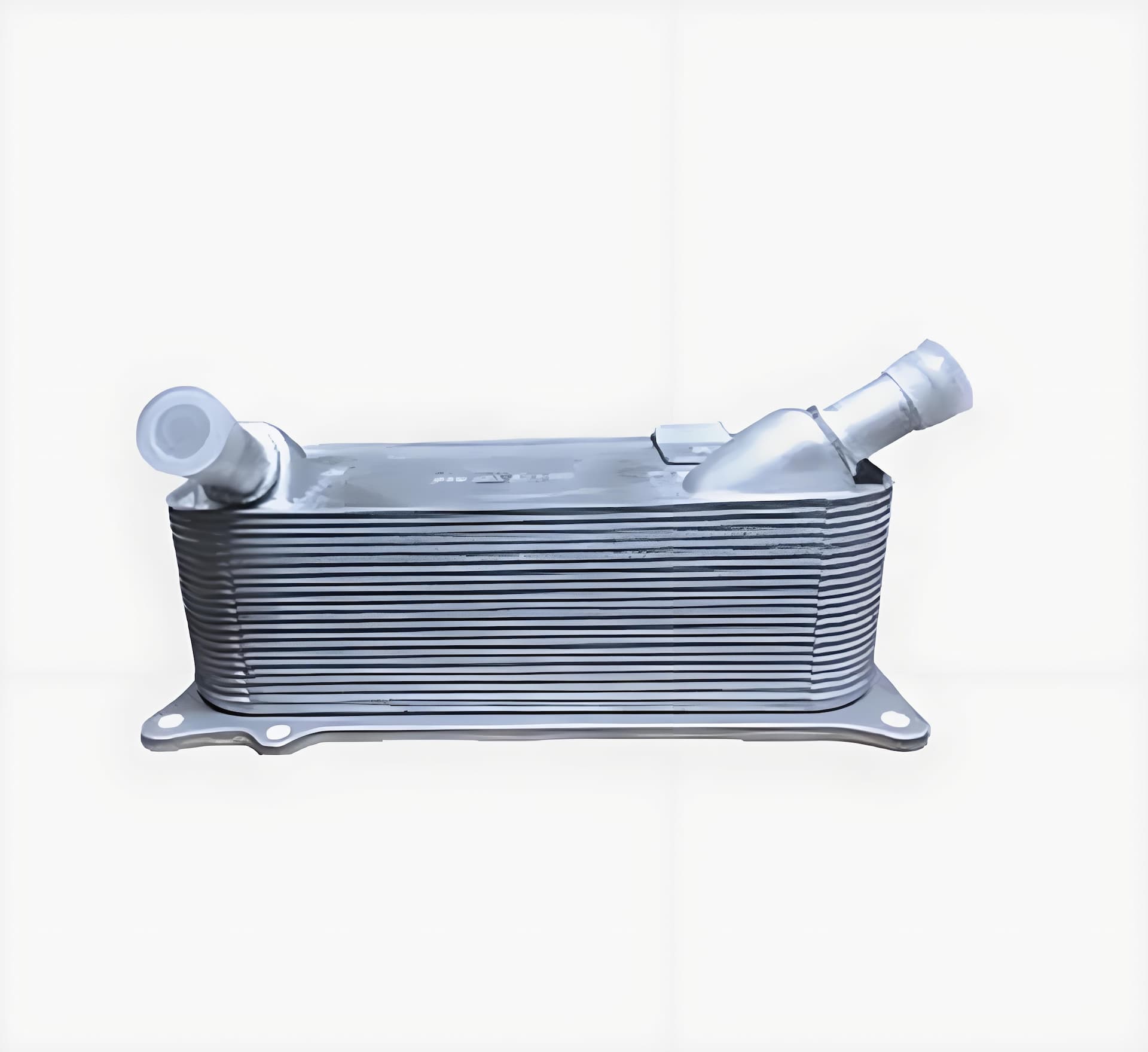

Automotive Thermal Management · ESML precision cleaning application

Automotive Thermal Management

Oil coolers, water cooling plates, manifolds, flow plates, electric water pumps, heat exchangers

Application sample 2

建议尺寸 Upload in admin · 1200×675

AI Liquid Cooling

Liquid/cold plates, manifolds, quick-disconnect components and coolant pipelines

How are cold plates cleaned? See cold plate cleaning parameters & process window →
SPEC · 04

Technical Specifications

Reference parameters for our thermal management cleaning equipment. Actual values are tuned per workpiece and cleanliness class.

Technical Specifications
MetricValue
Residual Particle Size≤ 200 μm
Cleanliness StandardISO 16232 / VDA 19.1
Cycle Time / Piece30 – 180 s
Cleaning MediaWater / Solvent
Drying MethodHot air + Vacuum
Process Traceability100% · Per-piece UID
CommunicationProfinet / OPC UA
Applicable WorkpiecesOil cooler / Flow plate / Cold plate / Manifold / End cap
05CASES

Reference Project

Client names are anonymized per confidentiality agreements.
View all projects
Integrated Thermal Flow-Channel Cleaning Line
2026Leading Domestic Thermal Management Tier 1

Integrated Thermal Flow-Channel Cleaning Line

Challenge
Delivered an integrated flow-channel cleaning system covering cleaning, drying, and cooling — meeting the cleanliness and cycle-time requirements of new-energy thermal management products.
Solution
  • Aqueous precision cleaning chamber
  • Multi-stage high-efficiency drying
  • Air / nitrogen cooling
Results
  • Clean → Dry → Cool (integrated)Process
  • Micron-level removalParticle control
  • Cold plates / Manifolds / HX / Liquid lines / Oil coolersWorkpieces
    • View case detail
    Hydrogen-Nitrogen Leak Testing Equipment
    2026Leading Domestic Thermal Management Component Manufacturer

    Hydrogen-Nitrogen Leak Testing Equipment

    Challenge
    Solution
    • Hydrogen-nitrogen leak testing system
    Results
  • Hermetic leak testingProduct type
  • Semi-automatic (fully automatic optional)Automation
  • LeakageTest item
    • View case detail
    DELIVERY · 06

    Delivery Process

    From discovery to delivery to support — a five-stage closed loop for custom automation.

    1. 01

      Discovery

      • Site survey
      • Process analysis
      • Requirements sign-off
    2. 02

      Design

      • CAD modeling
      • Component selection
      • Design review
    3. 03

      Prototype

      • Pilot build
      • Performance test
      • Joint review
    4. 04

      Delivery

      • Assembly & tuning
      • Line commissioning
      • UAT sign-off
    5. 05

      Support

      • Spare parts
      • Remote support
      • Iterative upgrade
    FAQ · 07

    FAQ

    What workpieces suit thermal management cleaning equipment?
    It serves automotive thermal management and AI liquid cooling components with internal flow channels — cold plate cleaning, oil cooler cleaning, water/liquid cooling plate cleaning, manifold cleaning, flow plate and end cap cleaning, plus heat exchangers, electric water pumps, coolant pipelines and quick-disconnect components — covering both the flow-channel cavity and exterior surfaces. Lines are custom-built to workpiece geometry, cycle time and cleanliness class.
    How is cleanliness verified under ISO 16232 / VDA 19.1?
    The extraction liquid after cleaning is analyzed by membrane filtration, reporting both particle size distribution (particle counts per size band) and residual contaminant mass. Note that ISO 16232 is a component-cleanliness standard — do not confuse it with cleanroom standard ISO 14644 or hydraulic-fluid contamination standard ISO 4406. The limits are defined by the OEM or Tier 1 in drawings or specifications, and our equipment can be aligned with the customer's cleanliness limits and inspection workflow.
    How are metal chips and micron particles removed from internal flow channels?
    Targeted/pulsed flushing with nozzles, pressure and flow designed around the channel geometry. Cleaning media (pure water, DI water or hydrocarbon) is recirculated through multi-stage filtration in the tank so dislodged particles are trapped by the filters. Automatic in-line tray transfer reduces manual handling and recontamination. Cycle time is programmable at roughly 30–180 seconds per piece, residual particle size is referenced at ≤ 200 μm, and cleanliness data is logged automatically.
    What cleaning media does the equipment support?
    Cleaning media can be pure water, DI water or hydrocarbon, selected by contaminant type, material compatibility and plant conditions, and recirculated through multi-stage filtration. After cleaning, parts go through air blow and then hot-air plus vacuum drying to avoid residual moisture in flow-channel cavities.
    Can the cleaning equipment integrate with MES and provide per-piece traceability?
    Yes. The equipment logs key process parameters and cleanliness results under a per-piece UID with full key-parameter history, and offers Profinet / OPC UA protocols for MES/SCADA integration.
    Is this standard equipment or custom-built? What is the process and lead time?
    Equipment is custom-built to workpiece structure, cycle-time targets and cleanliness class, and has been delivered and validated at a leading domestic thermal management Tier 1 supplier. The process covers requirements consultation, design review, manufacturing, in-house FAT, on-site installation and SAT ramp-up; lead time is assessed per project. As a Suzhou cleaning equipment manufacturer, ESML responds within 24 business hours.
